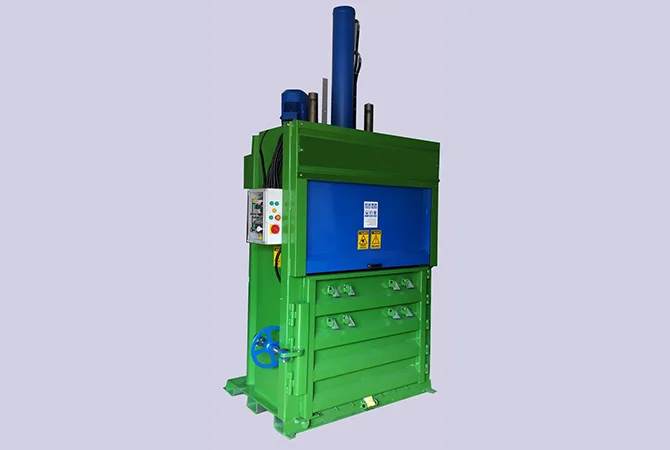

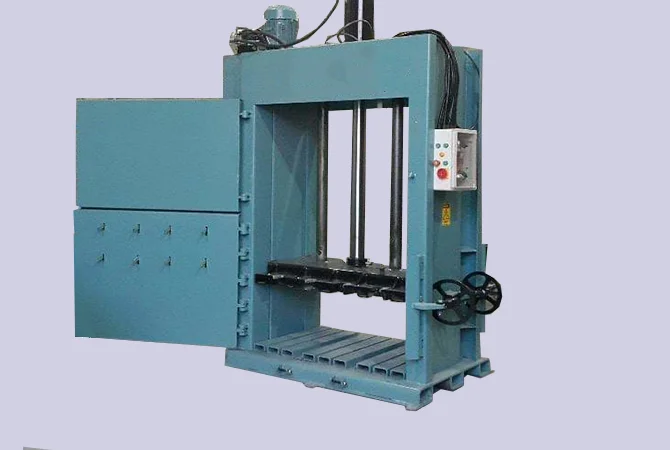

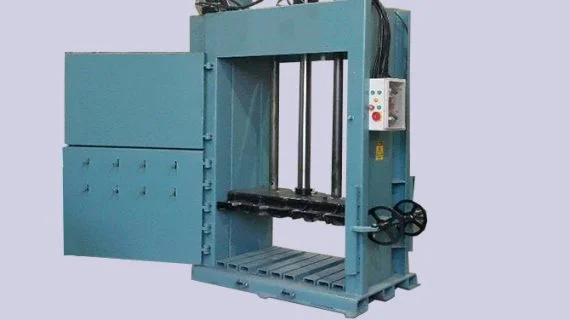

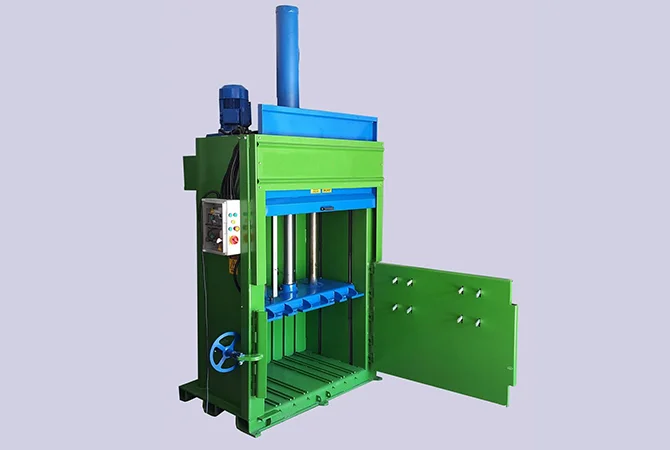

PREDPS-40 Baler Press Machine Vertical
PREDPS-40 Bale Press Machine Vertical
PREDPS-40 Baler Press Machine Vertical;The PREDPS-40 model is designed for more types of recycled scrap and higher scrap sizes. It is a product with a strong structure designed with an effective safety device that enables the baling of various metal scraps.
Equipped with maximum security systems in usage areas
Has a motor protection device
Stand-By working system
Support shaft in pairs
Bale Press Machine Vertical – PREDPS-40 – Technical Specifications
| Engine power | 7.5KW |
| Bale size (width, height) | 1700x1000x3150mm adjustable |
| Filling Chamber dimensions | 1200×650 |
| Bale dimensions | 1200x800x900 |
| Wire fastening system | Manual (operator assisted) |
| Pressing force | 40 tons |
| Paper | 470k? |
| Plastic | 520k? |
| Machine width / Depth | 1400mm / 1000mm |
| Machine height | 2200mm |
| Machine weight | 700k?s |
| Voltage | 400 volt-3 faz 50hz |
| Kontrol voltaj? | 24 volt DC |
| Electrical schematic component | SCHNE?DER |
| Automation system | PREMIUM CEVRE |
