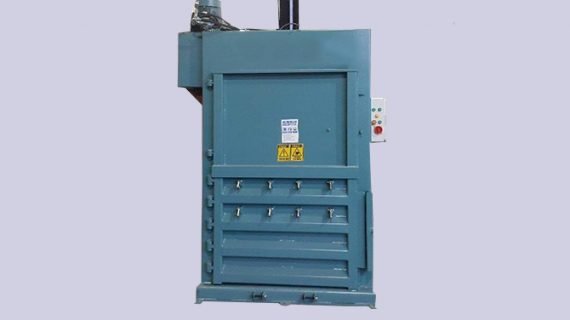

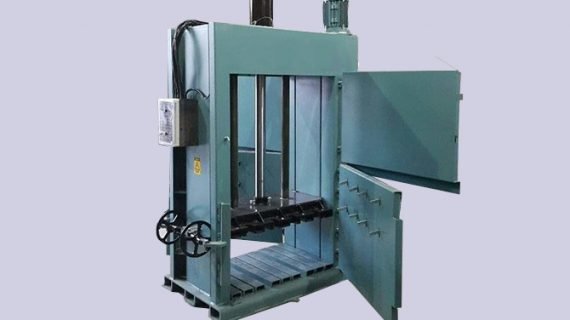

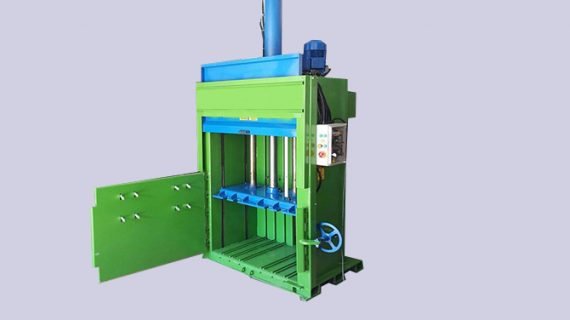

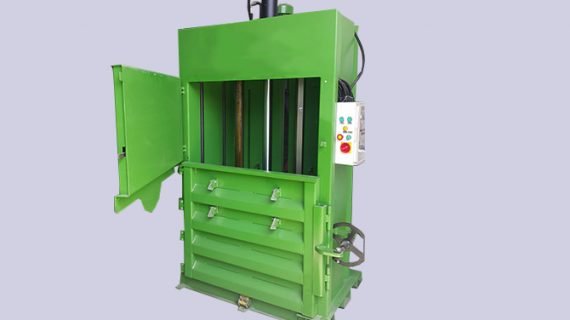

PREDPS-30 Baler Press Machine Vertical
PREDPS-30 Bale Press Machine Vertical

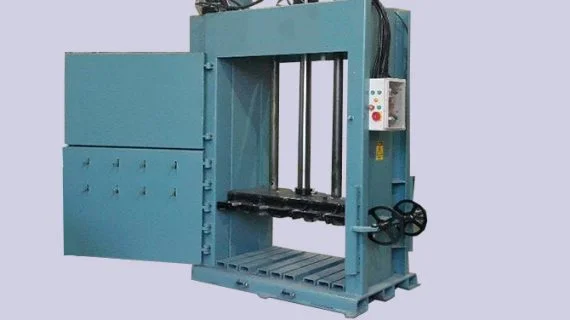

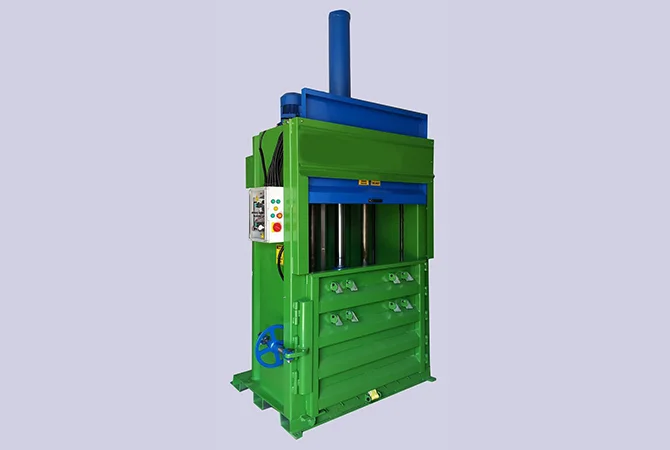

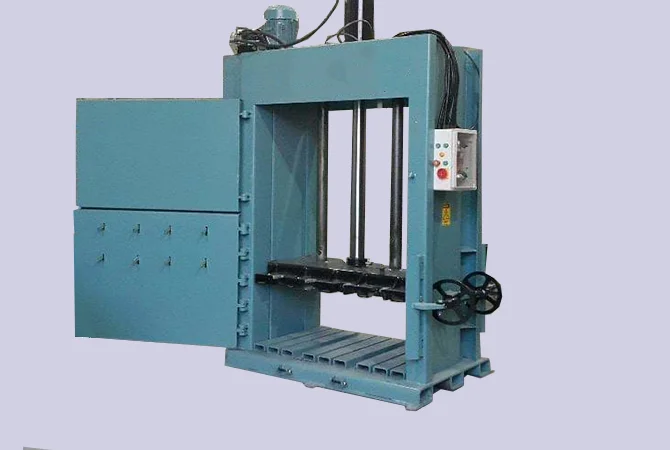

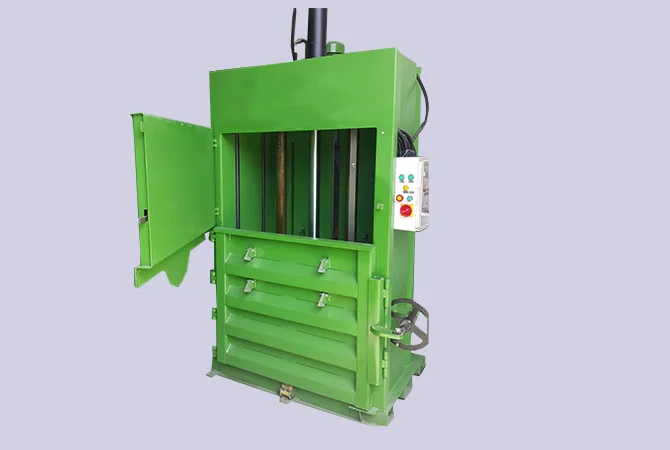

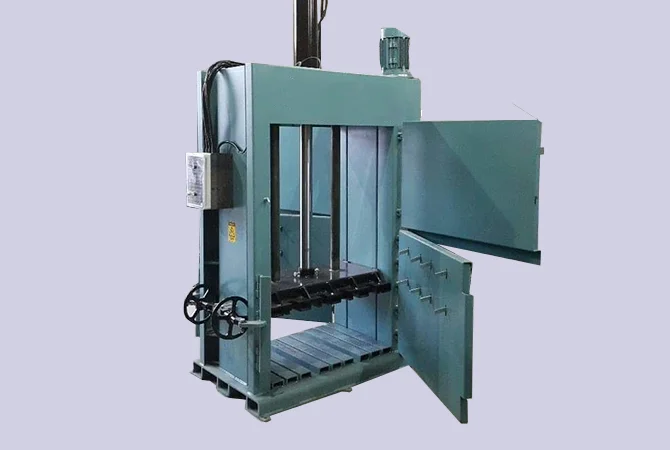

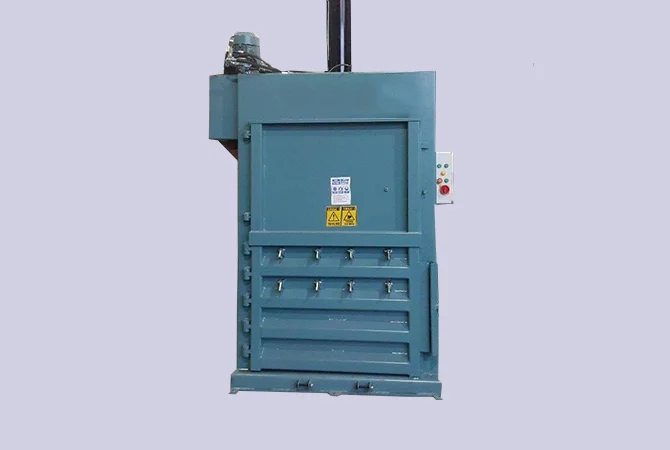

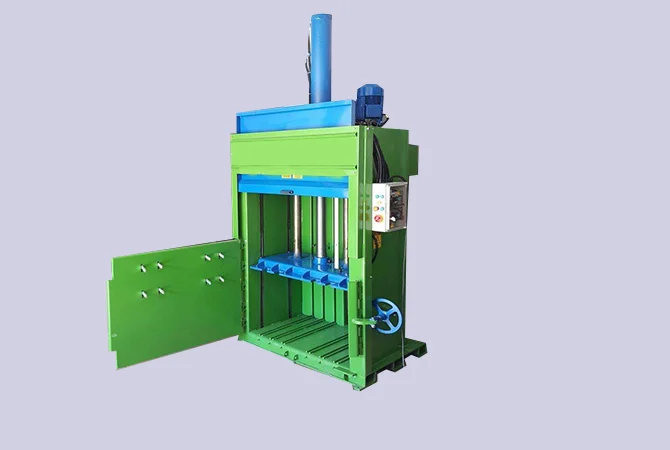

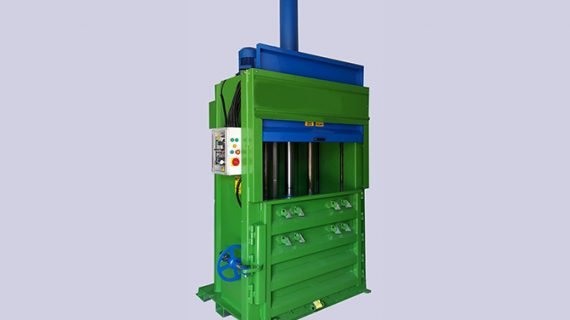

PREDPS-30 Baler Press Machine Vertical;The PREDPS-30 model is designed for more types of recycled scrap and higher scrap sizes. It is a product with a strong structure designed with an effective safety device that enables the baling of various metal scraps.
Equipped with maximum security systems in usage areas
Has a motor protection device
Stand-By working system
Support shaft in pairs
Bale Press Machine Vertical – PREDPS-30 – Technical Specifications
| Engine power | 5.5KW |
| Bale size (width, height) | 1200x800x900 |
| idle rotation time | 45 seconds |
| Baling weight | 300-380 k?s |
| Number of wire binding | 4 lacing |
| Wire fastening system | Manual (operator assisted) |
| Cylinder pressure force | 30 tons |
| Feeding chamber and dimensions | 1200mmx700mm |
| Machine width / Depth | 1500mm |
| Machine height | 2700mm |
| Machine weight | 850k?s |
| Voltage | 400 volt-3 faz 50hz |
| Kontrol voltaj? | 24 volt DC |
| Electrical schematic component | SCHNE?DER |
| Automation system | PREMIUM CEVRE |
