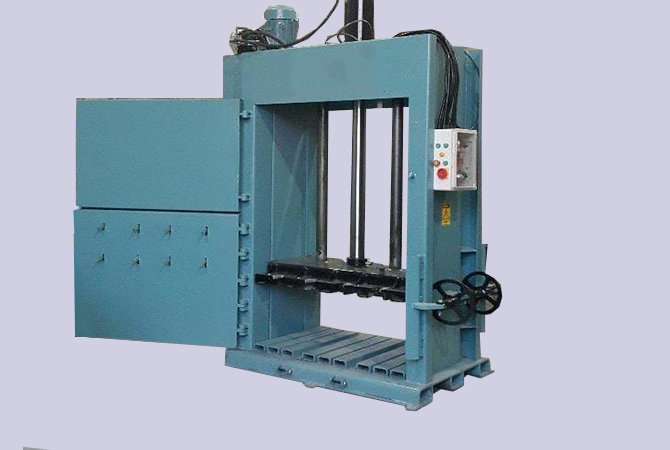

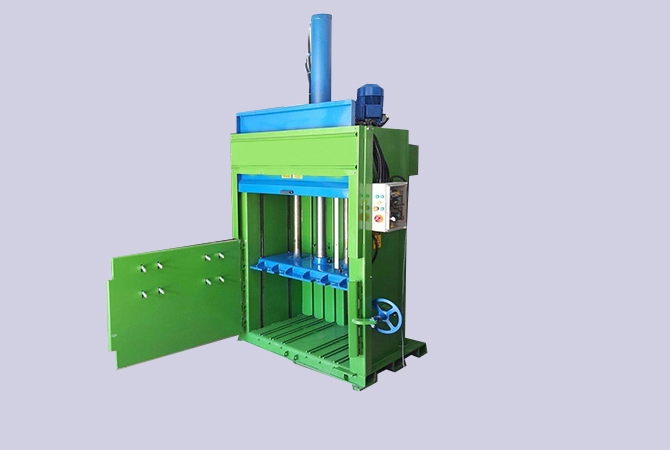

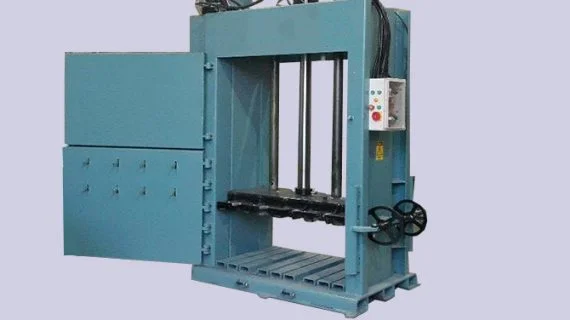

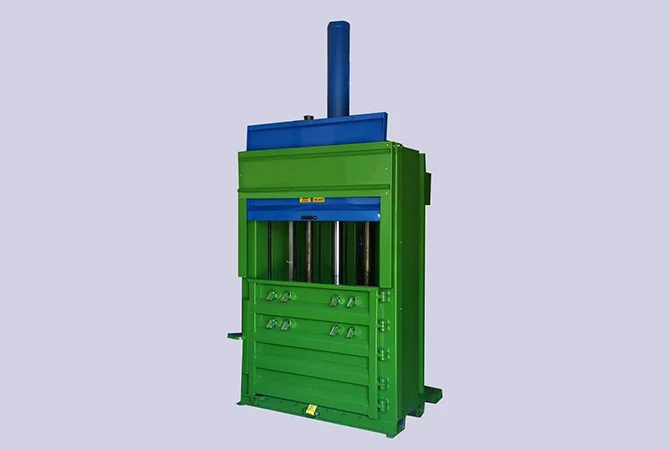

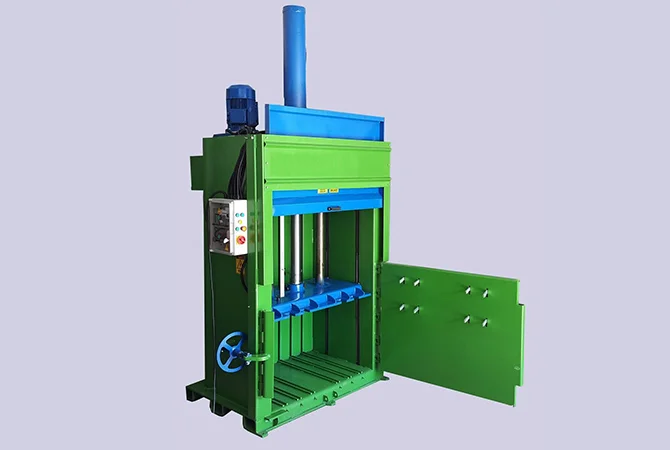

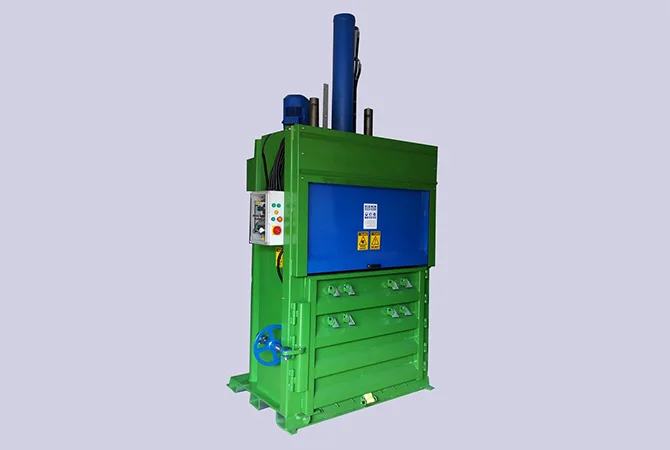

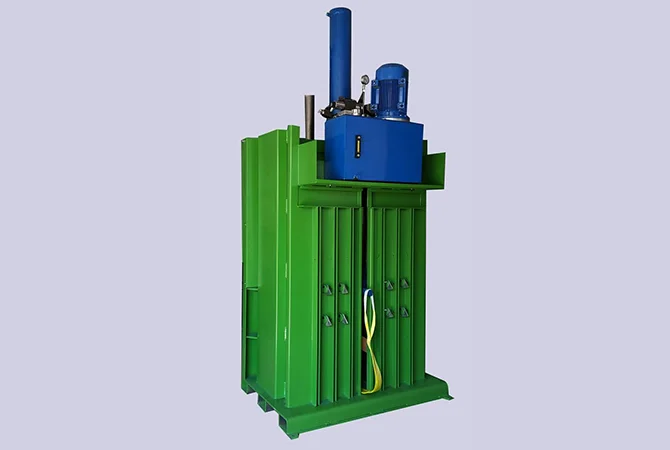

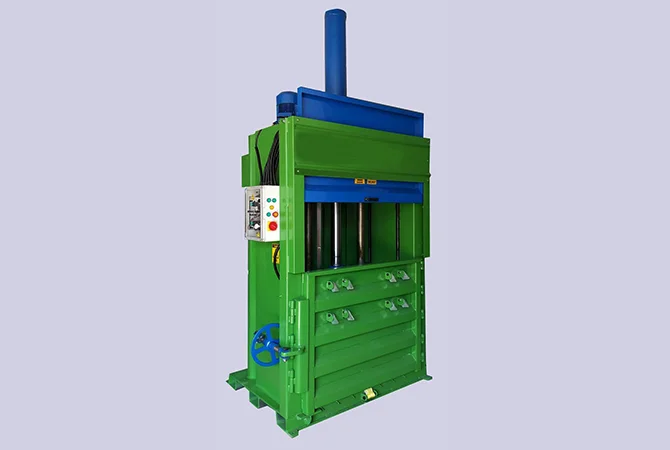

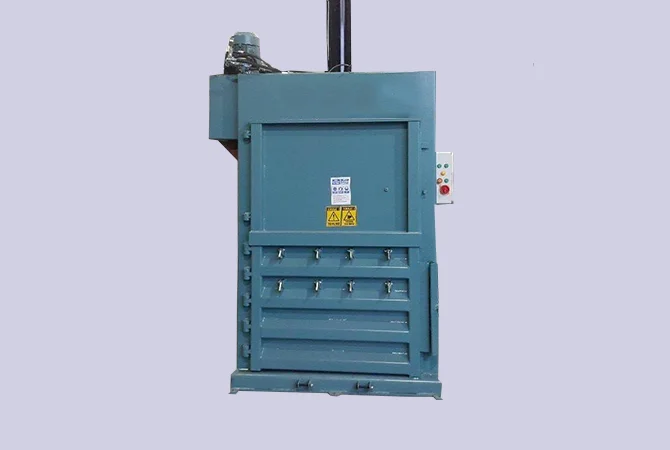

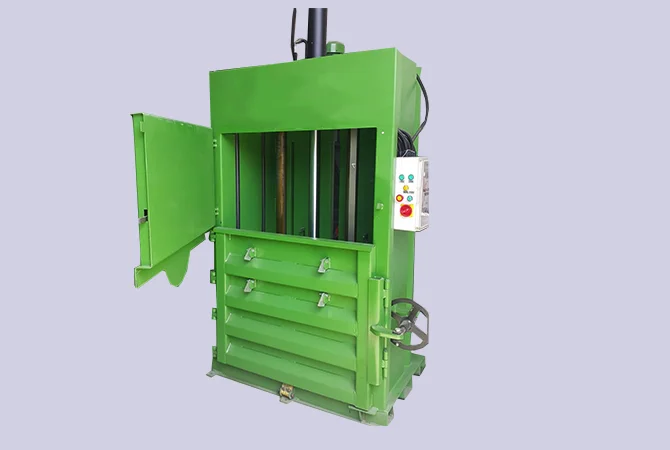

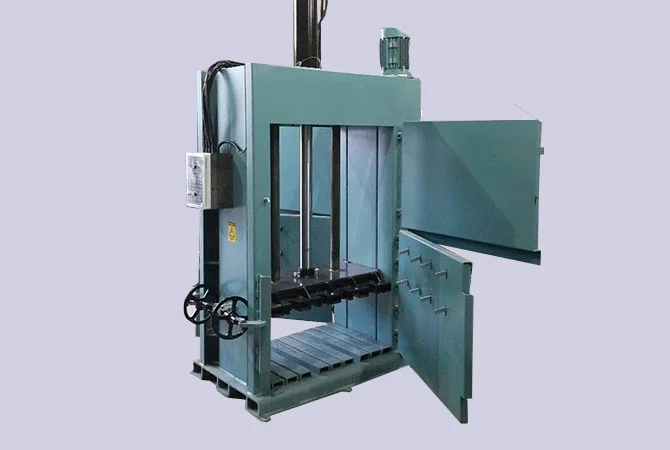

PREDPS-50 Bale Press Machine Vertical
PREDPS-50 Bale Press Machine Vertical
PREDPS-50 Bale Press Machine Vertical;PREDPS-50 model is designed for more recycled scrap variety and higher scrap sizes. It is a product that has a strong construction and is designed with an effective safety device that allows the baling of various metal scraps.
Equipped with maximum safety systems in usage areas
It has engine protection device
Stand-By working system
Support shaft in pairs
PREDPS-50 Bale Press Machine Vertical – Technical Specifications
| Engine power | 7.5KW |
| Bale size (width, height) | 1200x 700 x 900 adjustable |
| Ram idle and cycle time | 45 seconds |
| Baling weight | 450 – 500k?s |
| Number of wire binding | 6 wire binding |
| Wire fastening system | Manual (operator assisted) |
| Cylinder pressing force | 50 tons |
| Feeding chamber and dimensions | 1200mmx700mm |
| Machine width / Depth | 1500mm / 1000mm |
| Machine height | 2500mm |
| Machine weight | 800k?s |
| Voltage | 400 volt-3 faz 50hz |
| Kontrol voltaj? | 24 volt DC |
| Electrical schematic component | SCHNE?DER |
| Automation system | PREMIUM CEVRE |
