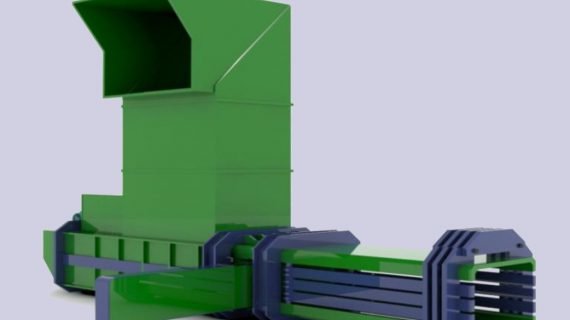

PRESPX-50 Horizontal Full Automatic Baling Press Machine

PRESPX-50 Horizontal Fully Automatic Baling Press Machine

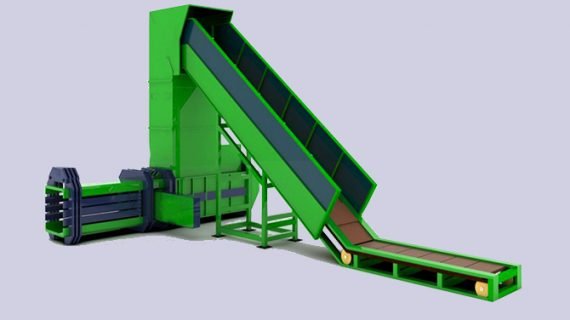

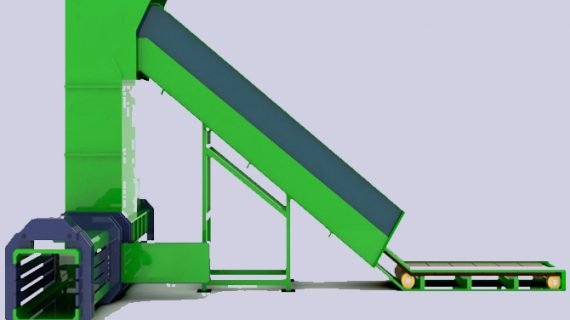

PRESPX-50 Horizontal Full Automatic Baling Press Machine;PRESPX-50 Model is designed for businesses that have larger recycling scrap. It is fully automatic, self-processing, buried in the ground (conveyor) supported, pet blasting system, automatic tying system, it can also be combined with large area and bulky bales and the separation and extraction platform of wastes to be pressed.

Equipped with high level protection systems

Engine safety system

Stand-by working device

PRESPX-50 Horizontal Fully Automatic Baling Press Machine – Technical Specifications

Engine power1x11kw
Bale size (width, height)1100mm x 850mm x adjustable
Ram idle and cycle time45 seconds
Baling weight550-600k?
Press grip ability1-3 tons / hour when sufficient feeding is provided
Oil tank and capacity1000k?s
Volumetric capacity80-90m3 / hour
Number of wire binding4 lacing

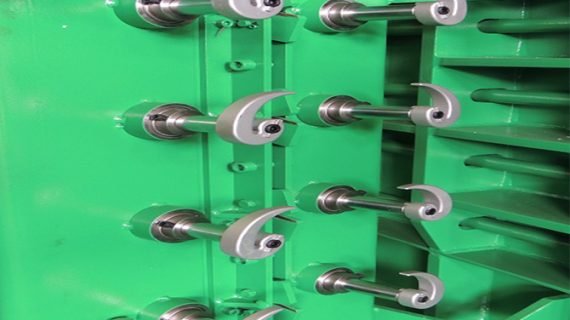

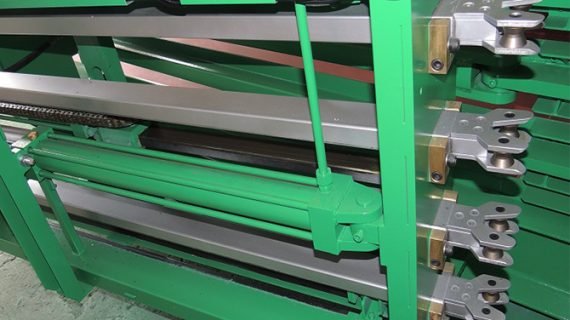

Wire fastening systemHydraulic driving-hydraulic cutting-bending

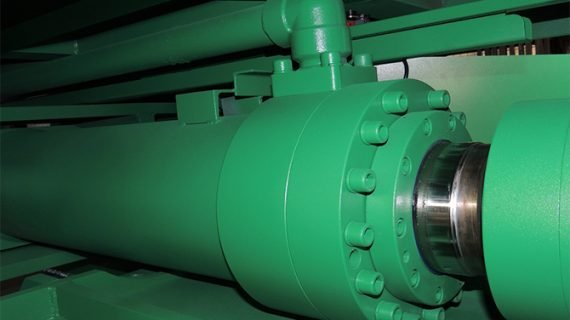

Cylinder pressure force50 tons

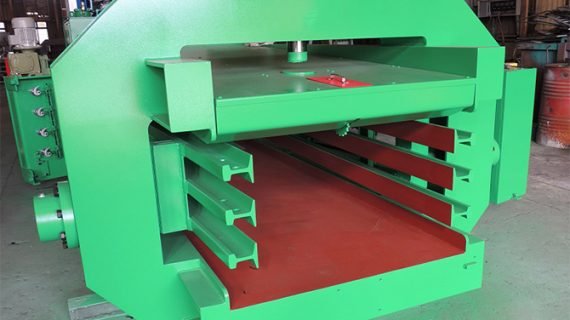

Feeding chamber and dimensions1400mm-1040mm
Machine length6800mm
Machine width4000mm
Machine height4850mm
Machine weight10000k?
Voltage400volt- 3faz – 50hz
Control voltage24 volt DC
Pump typeVariable flow rate and piston pump
Power and Package systemPowerful flow pump also Regenerative block
Electrical schematic componentSCHNE?DER / SIEMENS
Automation systemPREMIUM CEVRE
