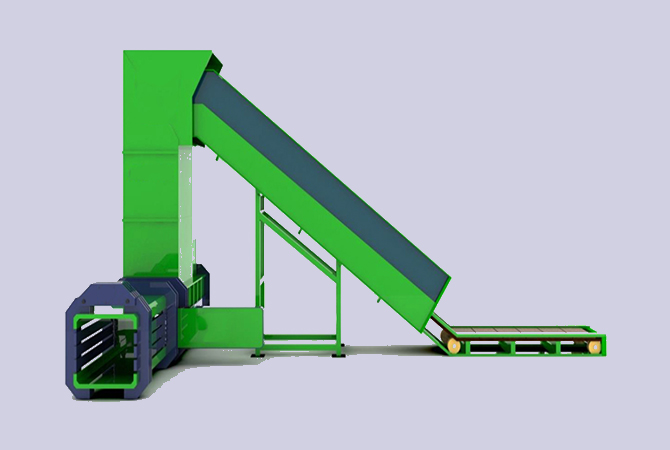

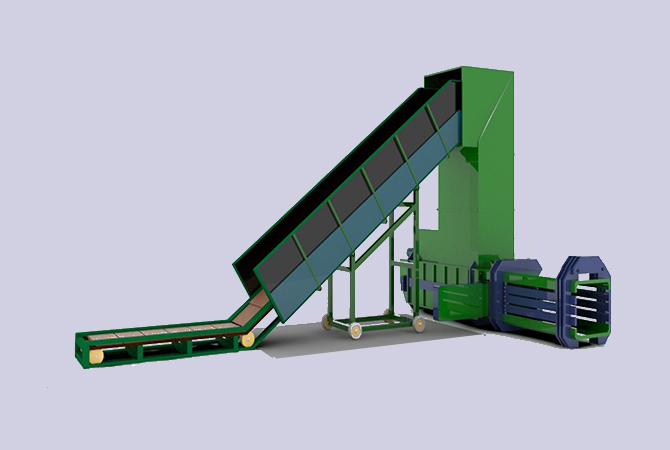

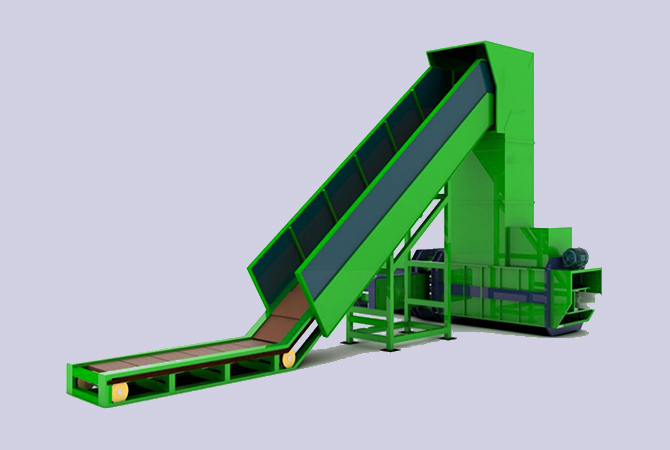

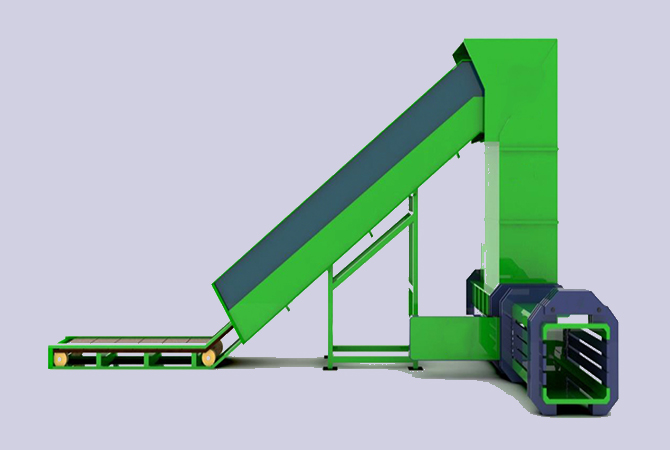

PRESPX-70 Horizontal Baling Press Machine
PRESPX-70 Horizontal Baling Press Machine

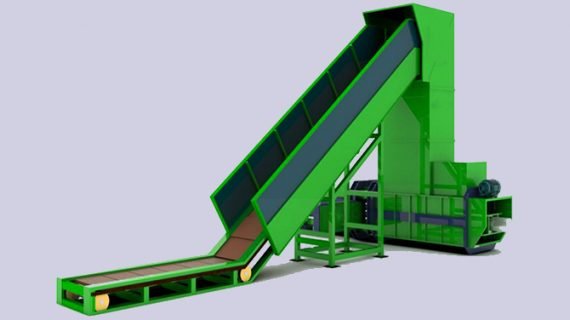

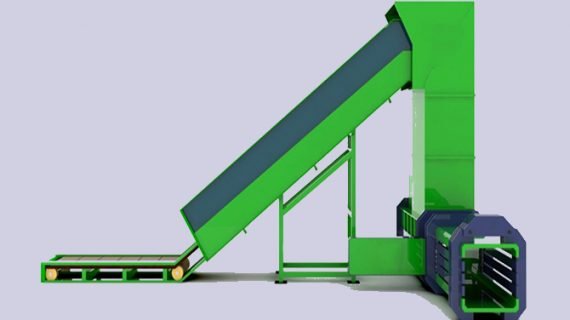

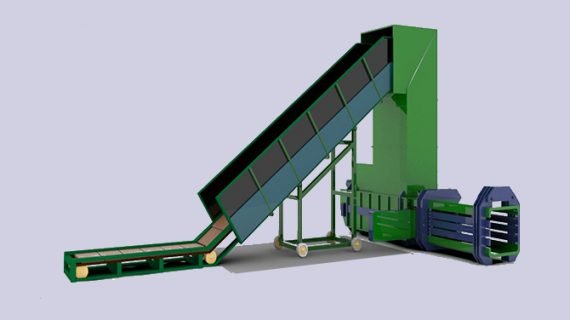

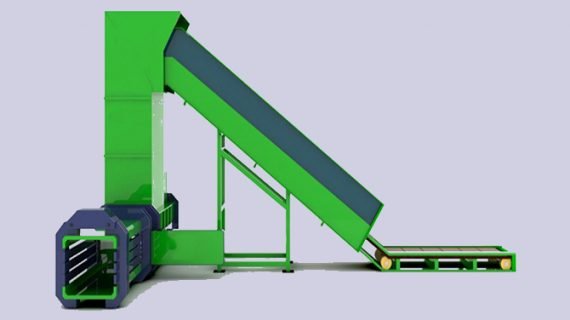

PRESPX-70 Horizontal Baling Press Machine; Model is designed for businesses that have larger recycling scrap. It is fully automatic, self-processing, buried in the ground (conveyor) supported, pet blasting system, automatic tying system, it can also be combined with large area and bulky bales and the separation and extraction platform of wastes to be pressed.
Equipped with high level protection systems
Engine safety system
Stand-by working device
PRESPX-70 Horizontal Baling Press Machine – Technical Specifications
| Engine power | 1x18kw |
| Bale size (width, height) | 1100mm x 850mm x adjustable |
| Ram idle and cycle time | 30 seconds |
| Baling weight | 550-600kgs |
| Press grip ability | 4-5 tons / hour when sufficient feeding is provided |
| Oil tank and capacity | 2000k? |
| Volumetric capacity | 80-90m3/saat |
| Number of wire binding | 4 lacing |

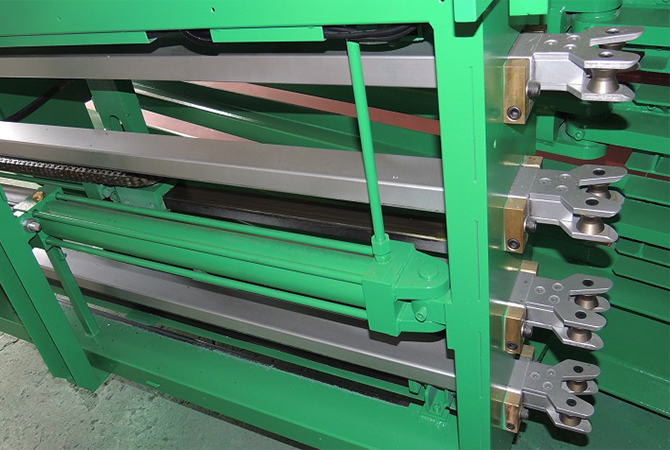

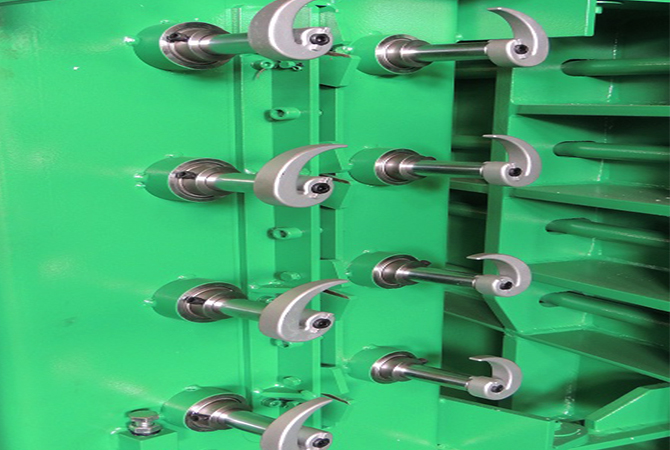

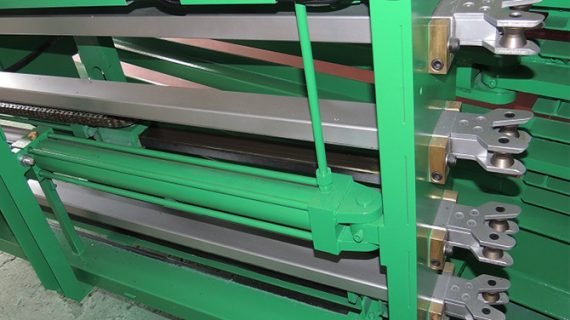

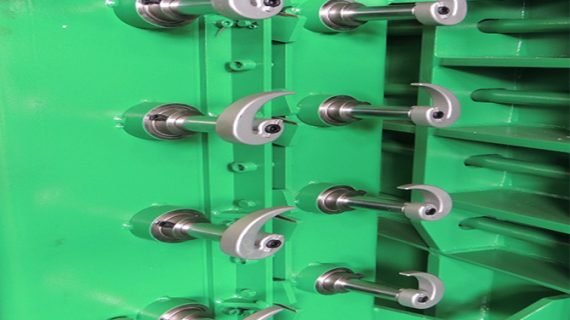

| Wire fastening system | Hydraulic driving-hydraulic cutting-bending |

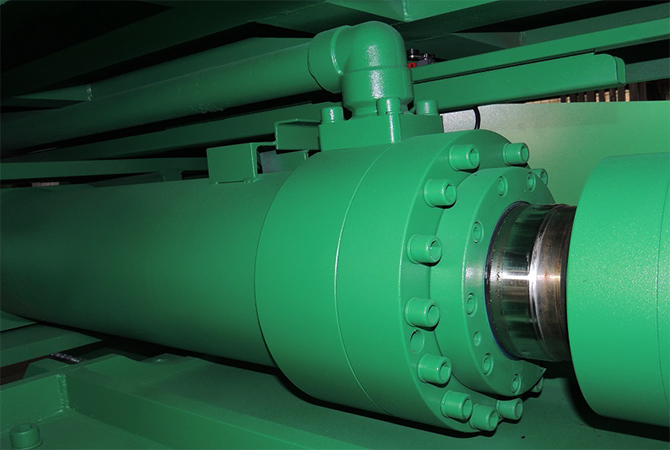

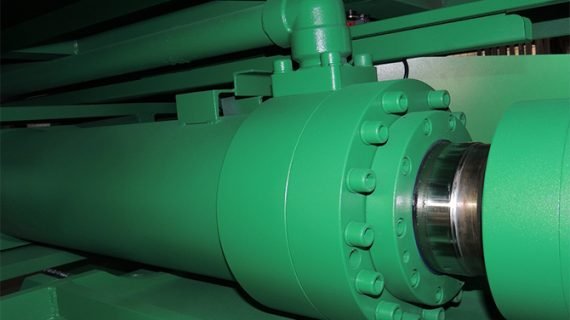

| Cylinder pressure force | 70 tons |

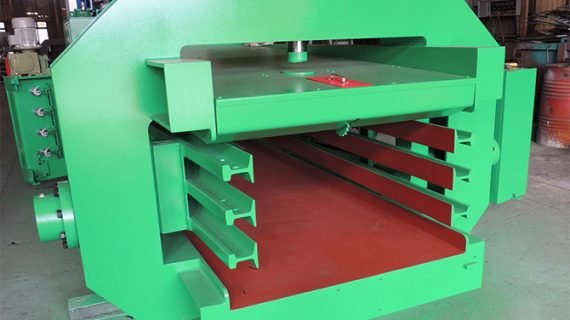

| Feeding chamber and dimensions | 1500mm-1040mm |
| Machine length | 6800mm |
| Machine width | 4000mm |
| Machine height | 4850mm |
| Machine weight | 14000k? |
| Voltage | 400volt- 3faz – 50hz |
| Control voltage | 24 volt DC |
| Pump type | Variable flow rate and piston pump |
| Power and Package system | Powerful flow pump also Regenerative block |
| Electrical schematic component | SCHNEIDER / SIEMENS |
| Automation system | PREMIUM CEVRE |
