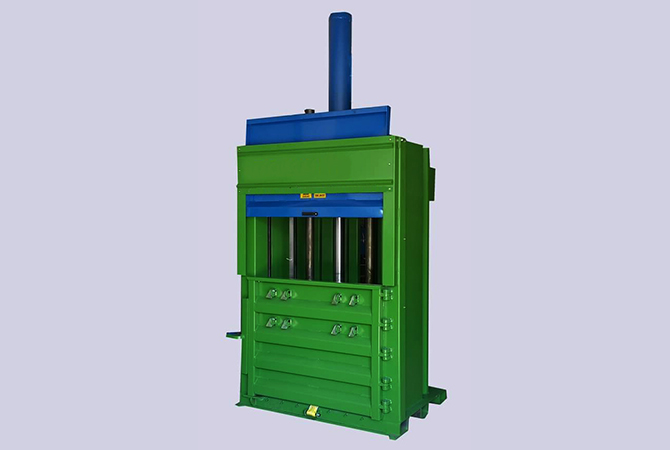

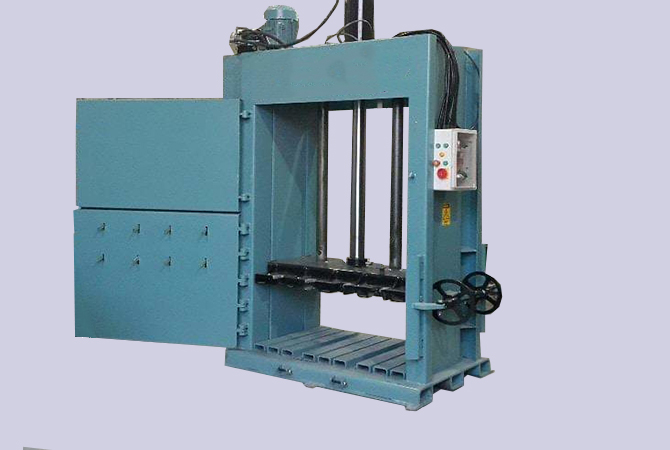

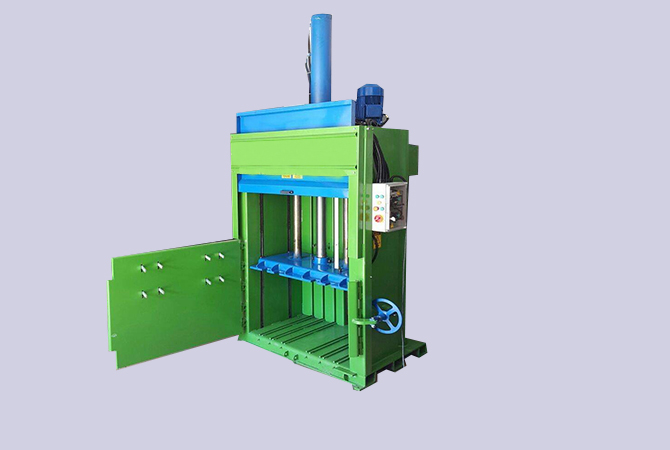

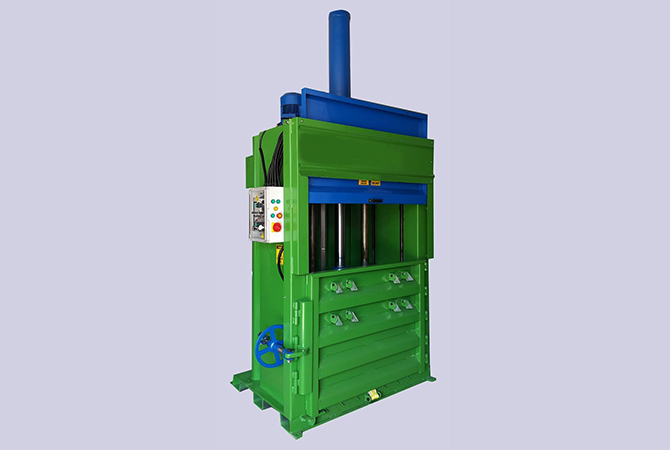

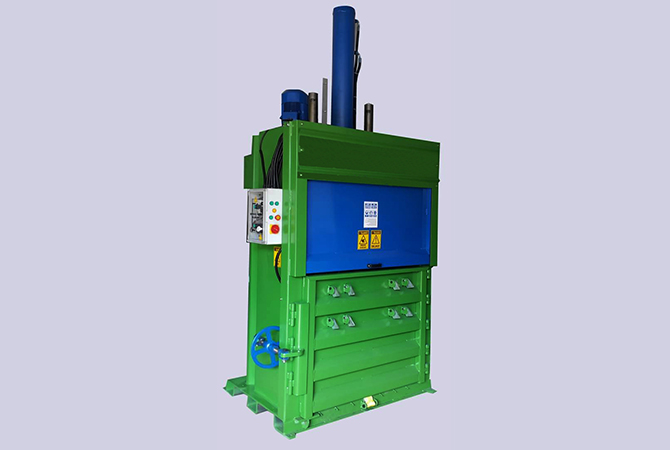

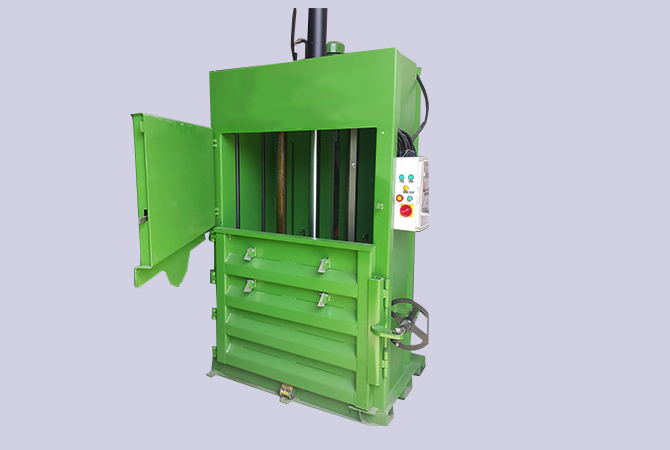

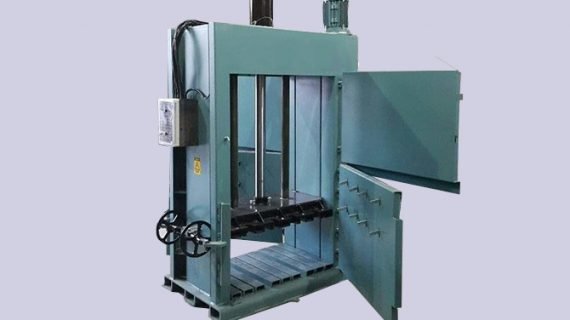

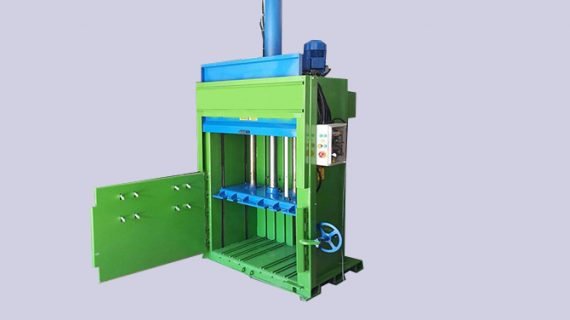

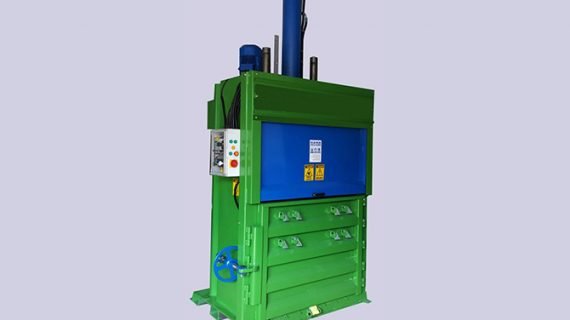

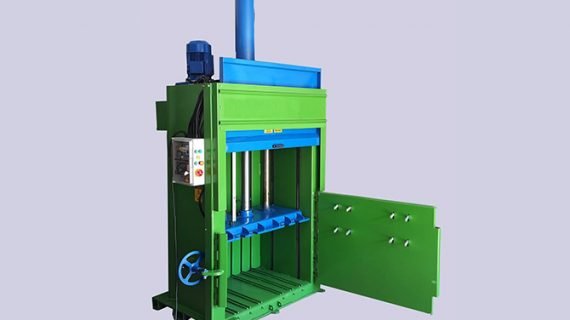

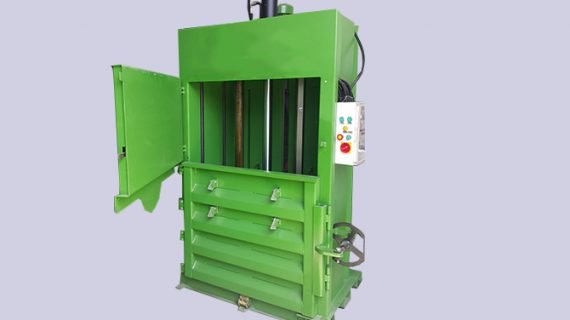

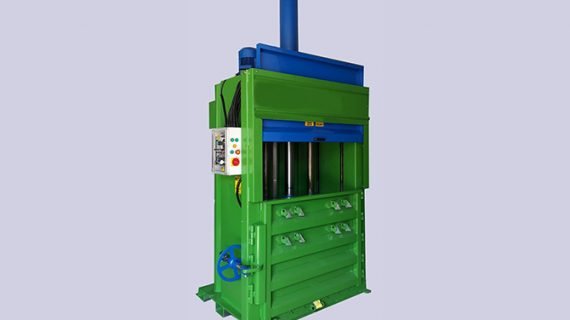

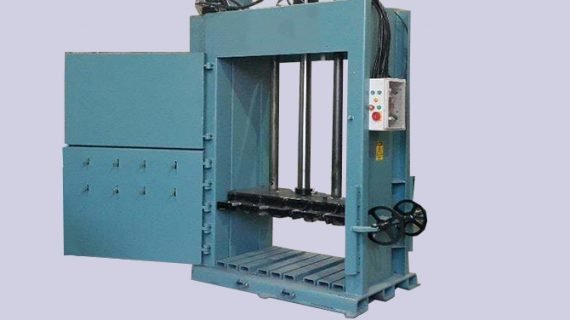

Vertical Baling Press Machine PREDPS 40 – Plastic And Metal Waste
Vertical Baling Press Machine PREDPS 40 – Plastic And Metal Waste
PREDPA-40 Bale Press Machine Vertical;PREDPA-40 model is designed for more types of recycled scrap and higher scrap sizes. It is a product with a strong structure designed with an effective safety device that enables the baling of various metal scraps.
Usage areas of vertical bale presses; It is produced by our skilled craftsmen, which can be applied in most sectors such as cotton, fabric, yarn, fibrous iron scrap, tin, cable waste, paper, newspaper, cardboard, plastic, pet bottle, rubber and leather sectors. . teams and engineers meeting industrial standards. It is designed using quality and safety approved components and advanced technology.
Protection with high security systems
PLC control system
engine protection system
standby working system
double support shaft
Galvanized wear resistant coating
Advanced compression
Crochet wrap / easy baling (New)
We have productions in different sizes and designs in line with the wishes of our valued customers.
Vertical Baling Press Machine PREDPS 40 – Technical Specifications
Engine power | 5.5kw |
Bale size (width, height) | 1200x800x900 |
idle rotation time | 45 seconds |
Baling weight | 350-420kgs |
Number of wire binding | 6 lacing |
Wire fastening system | Manual (operator assisted) |
Cylinder pressure force | 40 tons |
Feeding chamber and dimensions | 1200mm x 700mm |
Machine width / Depth | 1500mm |
Machine height | 2700mm |
Machine weight | 1950k? |
Voltage | 400 volt-3 faz 50hz |
Kontrol voltaj? | 24 volt DC |
Electrical schematic component | SCHNE?DER |
Automation system | PREMIUM CEVRE |
