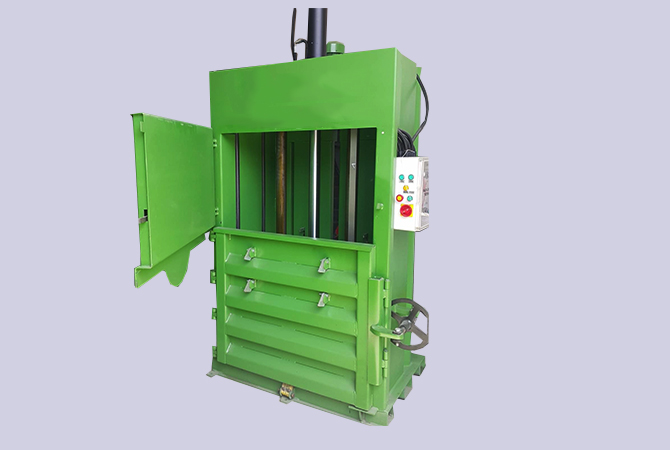

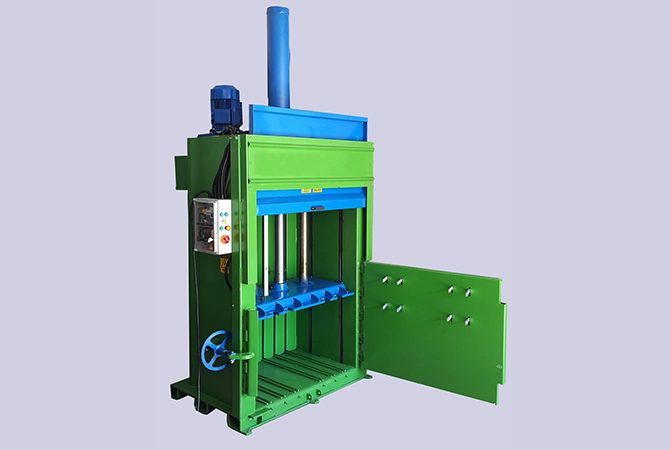

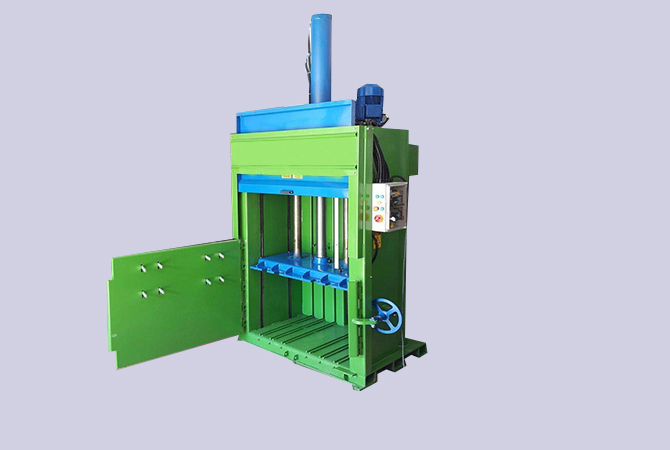

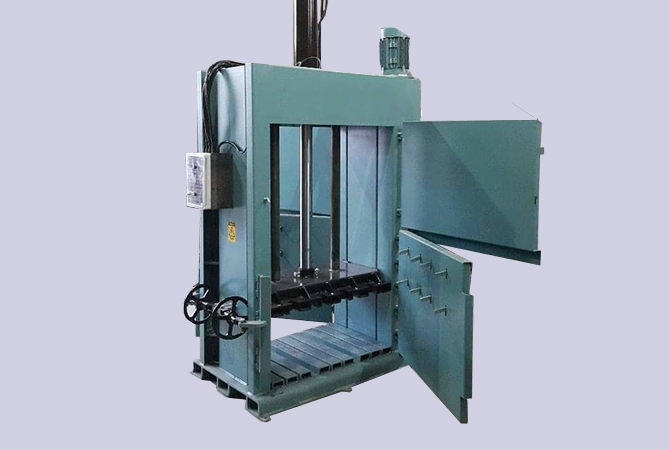

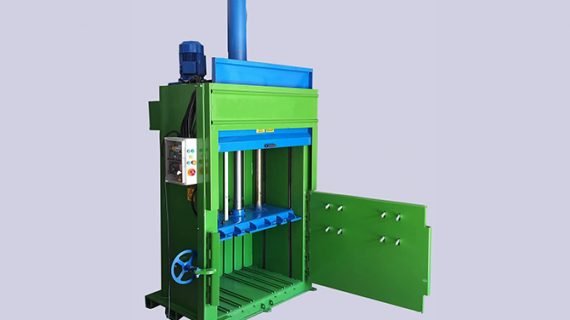

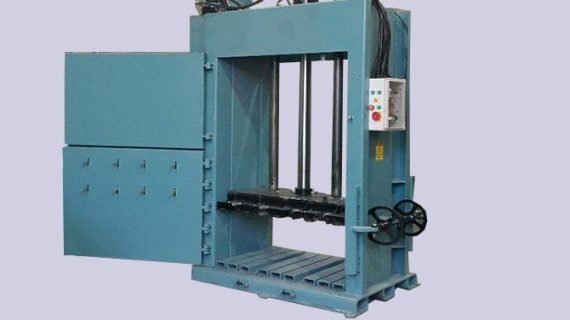

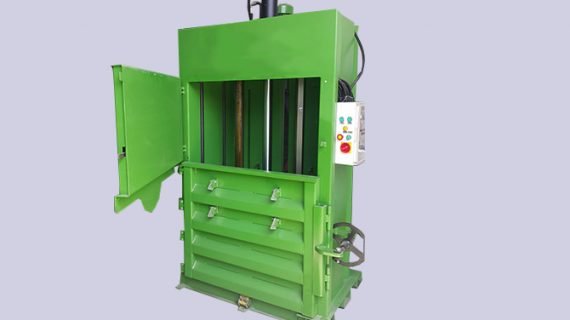

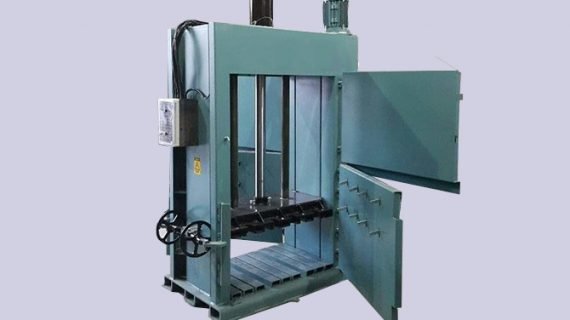

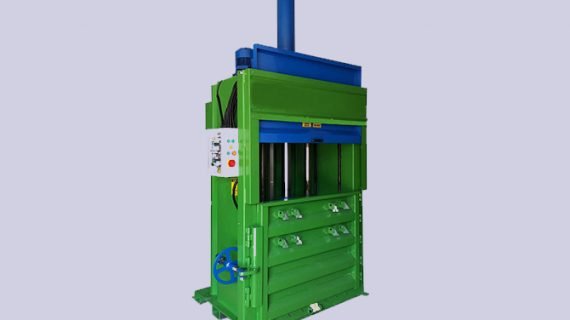

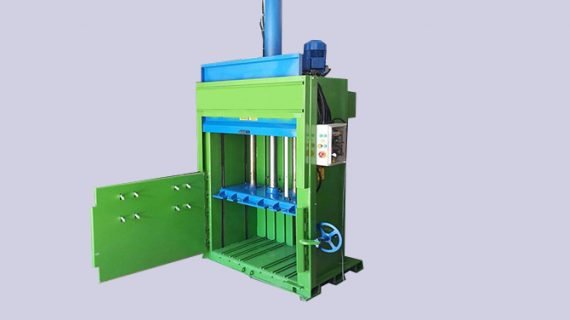

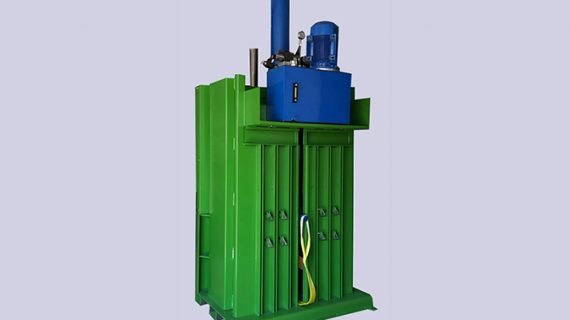

PREDPS-20 Bale Press Machine Vertical

PREDPS-20 Bale Press Machine Vertical

PREDPS-20 Bale Press Machine Vertical;The PREDPS-20 model is designed for more types of recycled scrap and higher scrap sizes. It is a product with a strong structure designed with an effective safety device that enables the baling of various metal scraps.

Equipped with maximum security systems in usage areas

Has a motor protection device

Stand-By working system

Support shaft in pairs

Bale Press Machine Vertical – PREDPS-20 – Technical Specifications

Engine power5.5KW
Bale size (width, height)1100x700x850
idle rotation time45 seconds
Baling weight200-270 Kgs
Number of wire binding4 lacing
Wire fastening systemManual (operator assisted)
Cylinder pressure force20 tons
Feeding chamber and dimensions1100mmx700mm
Machine width / Depth1400mm
Machine height2600mm
Machine weight1400k?
Voltage400 volt-3 faz 50hz
Kontrol voltaj?24 volt DC
Electrical schematic componentSCHNE?DER
Automation systemPREMIUM CEVRE
