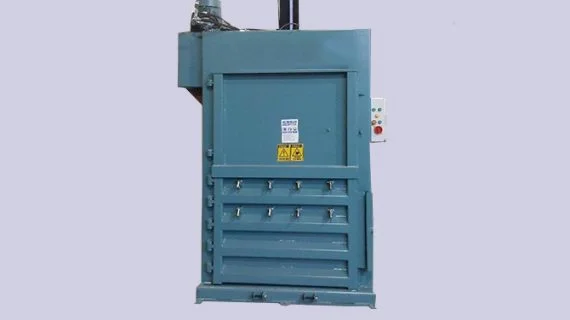

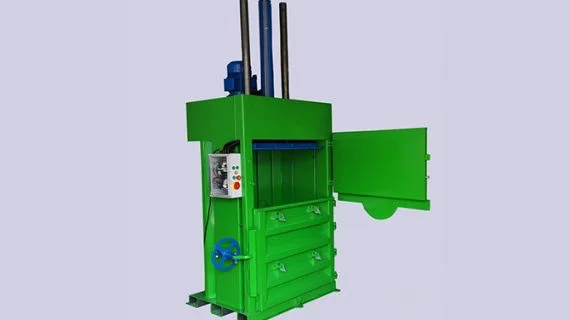

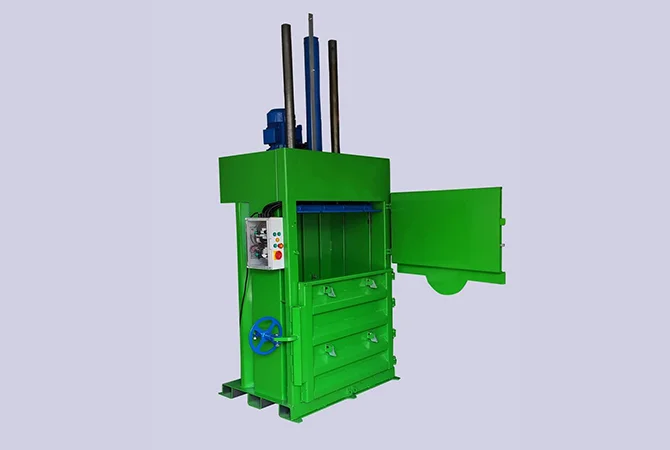

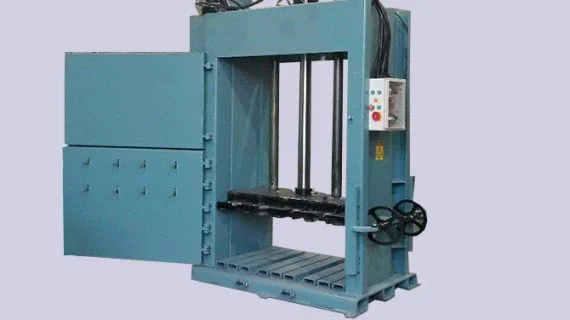

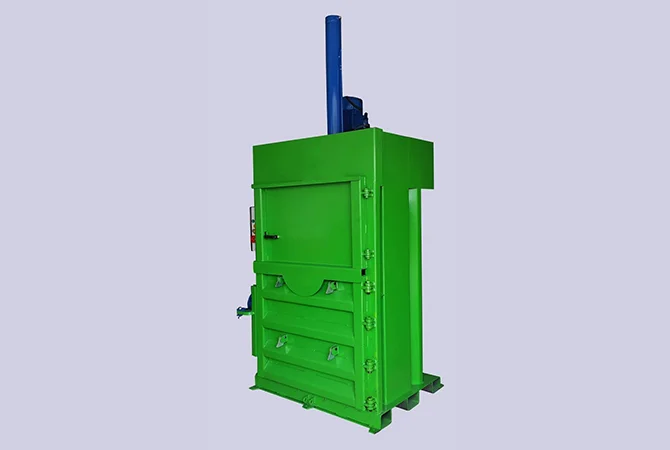

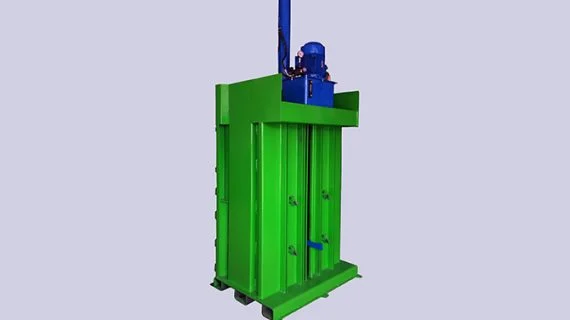

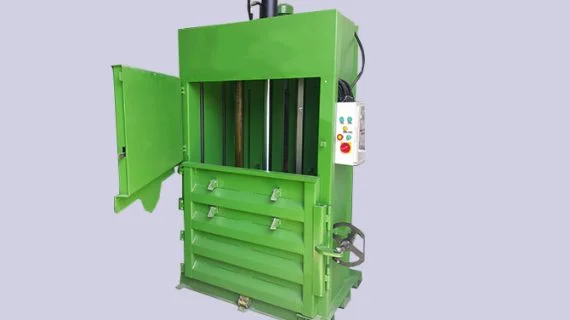

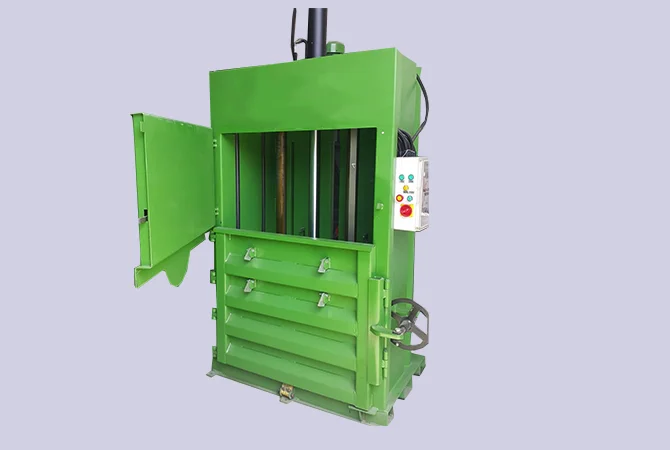

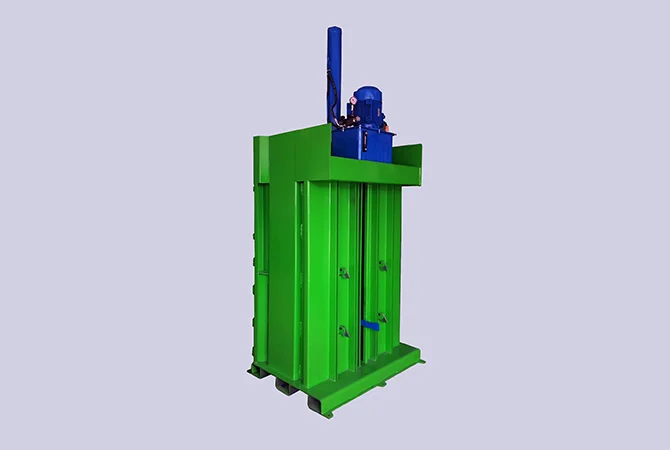

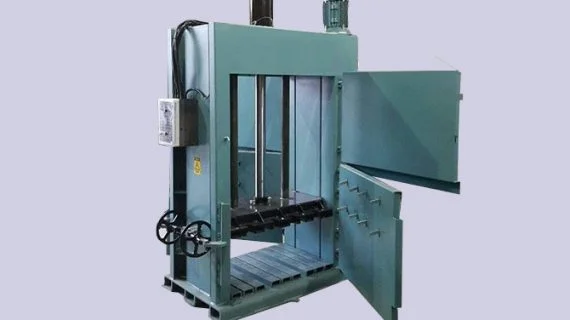

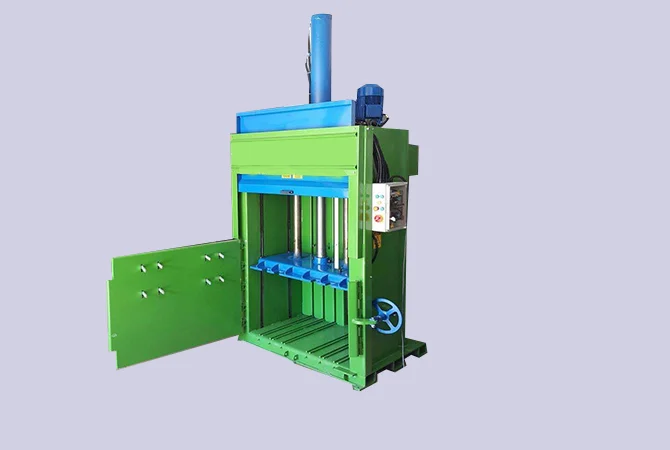

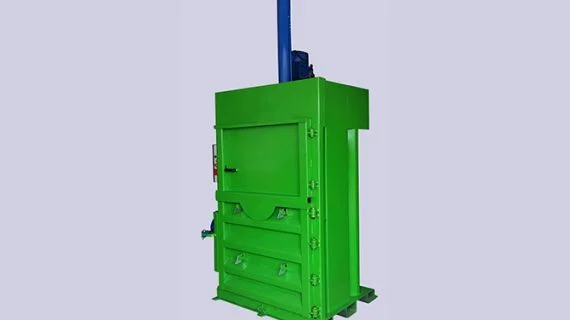

PREDP-5 Baler Press Machine Vertical
PREDP-5 Baler Press Machine Vertical

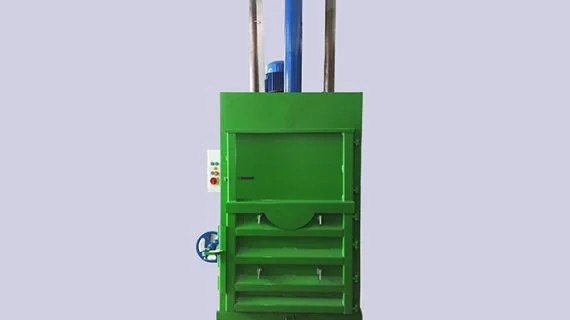

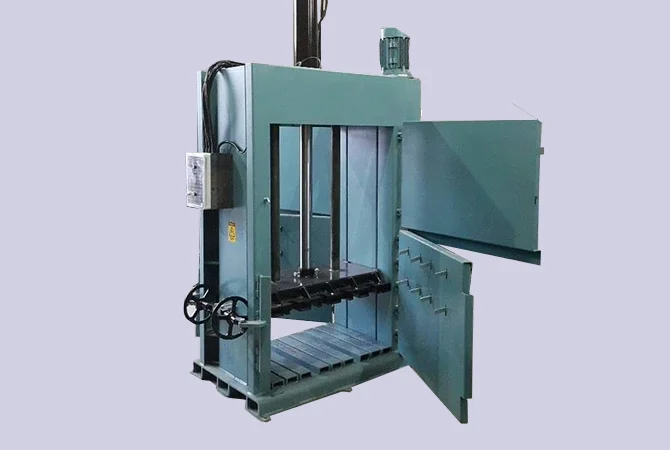

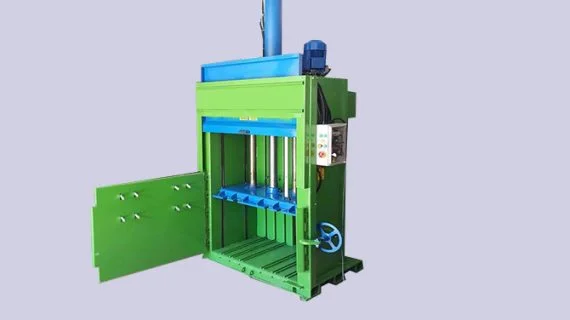

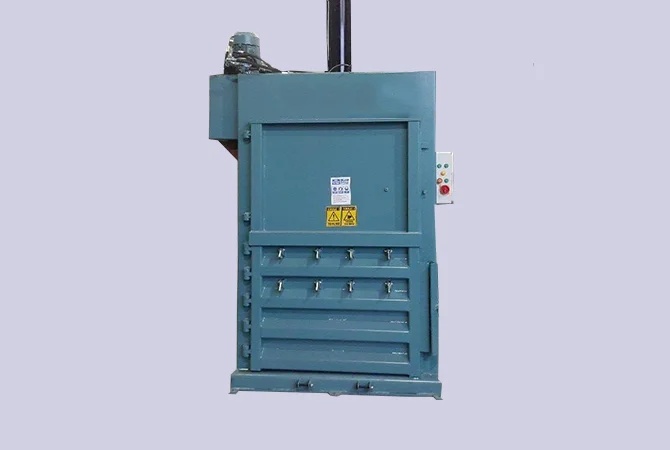

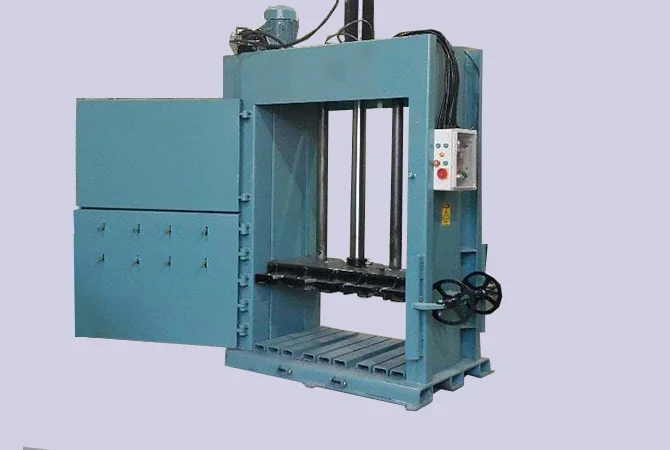

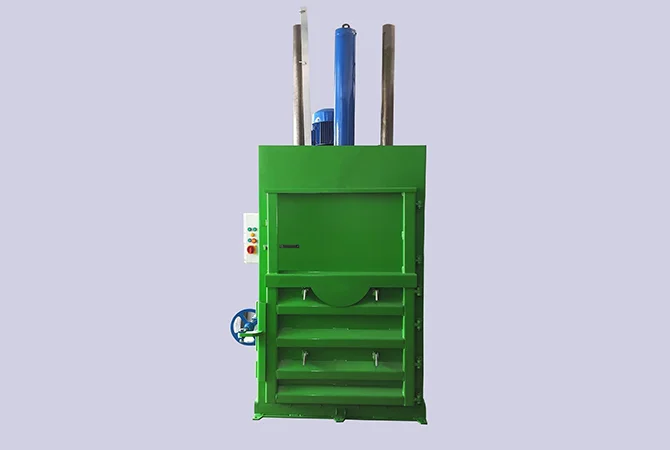

PREDP-5 Baler Press Machine Vertical;The PREDP-5 model is designed for more types of recycled scrap and higher scrap sizes. It is a product with a strong structure designed with an effective safety device that enables the baling of various metal scraps.
Equipped with maximum security systems in usage areas
Has a motor protection device
Stand-By working system
Support shaft in pairs
Bale Press Machine Vertical – PREDP-5 – Technical Specifications
| Engine power: | 2KW |
| Bale size (width, height 13px): | 700X500X800 |
| idle rotation time: | 45 seconds |

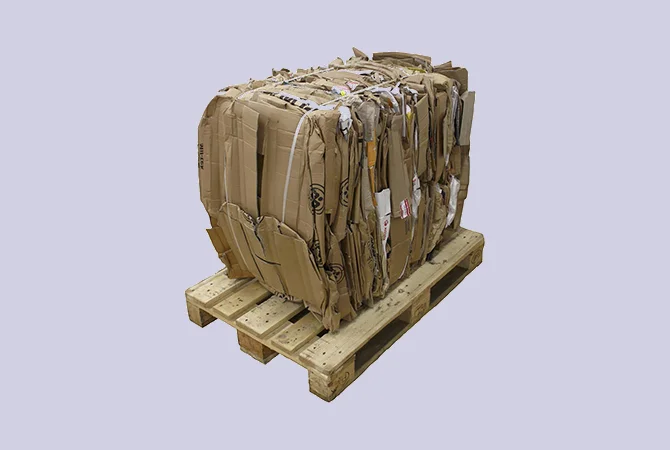

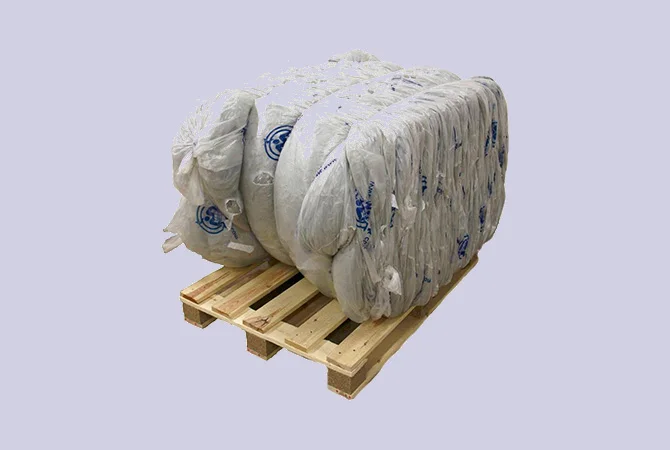

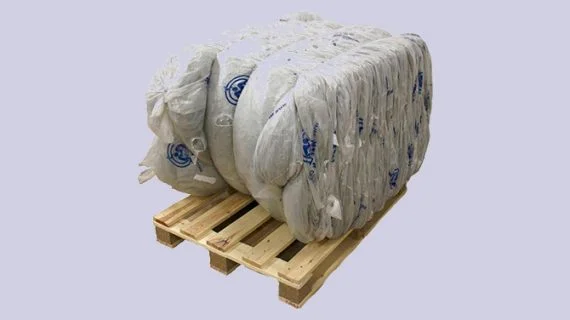

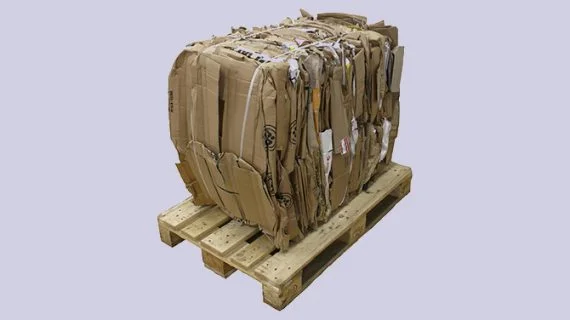

| Baling weight: | 60-80 kg |
| Number of wire binding: | 2 lacing |
| Wire fastening system: | Manual (operator assisted) |
| Cylinder pressure force: | 5 tons |
| Feeding chamber and dimensions: | 700mm x 500mm |
| Machine width / Depth: | 900mm |
| Machine height: | 2250mm |
| Machine weight: | 500kg |
| Voltage: | 400 volt-3 faz 50hz |
| Kontrol voltajı: | 24 volt DC |
| Electrical schematic component: | SCHNEİDER |
| Automation system: | PREMIUM CEVRE |
